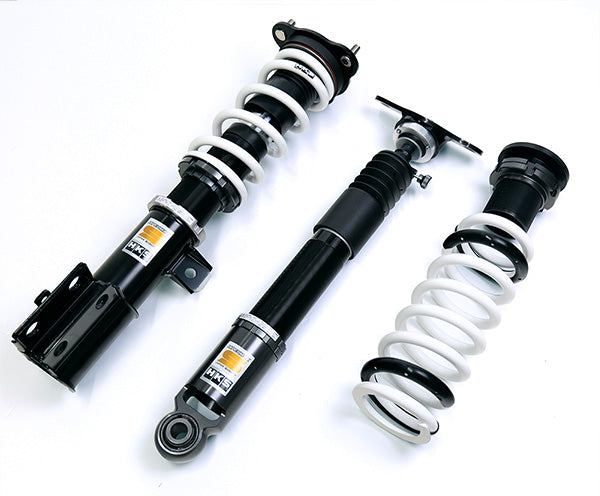

Hipermax S
- Without compromising the OEM ride quality, we have improved the ride comfort required for everyday use and sports performance such as roll rigidity in a well-balanced way.
- The upper mount shape has been changed in the Gen2. A reinforced rubber mount has been adopted for the HKS original dedicated upper plate. Aiming for a damping characteristic that is smooth and supple while also having a stiff feel, stability and controllability at the limit have also been significantly improved.
- Rather than using the same settings as the previous model, we have performed special tuning to match the dynamic characteristics in the Gen2.
- We also tested the newly added AT vehicle. Concluding, it provides the best ride comfort for both MT and AT vehicles.
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) |
- | - |
Ride Height (mm)
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 654 | 651 | 681 ～ 615 | 681 ～ 615 |
| Against stock | -27 | -30 | 0 ～ -66 | 0 ～ -66 | |
| REAR | Ride height *1 | 651 | 654 | 678 ～ 618 | 678 ～ 618 |
| Against stock | -26 | -23 | 1 ～ -59 | 1 ～ -59 | |
*Not compatible with Gen1 model (up to March 2024)
