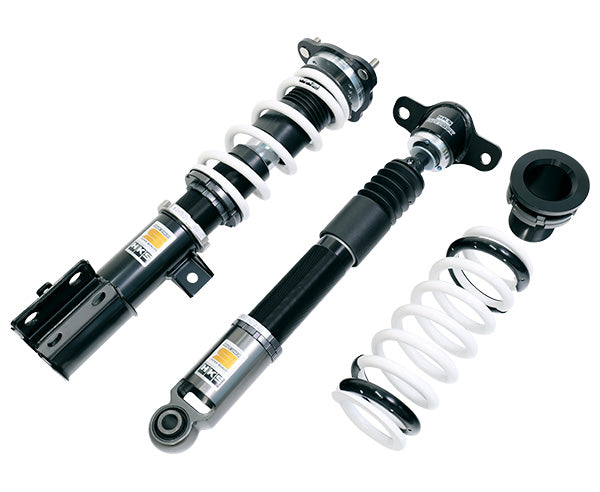

The long-awaited pillow ball upper mount version of the HIPERMAX S for GR Yaris Gen2 is here!
- This new setup retains the performance of the original HIPERMAX S while adding adjustable camber capability (up to approximately 4°40’), providing greater flexibility for fine-tuning and wheel fitment.
- It enhances ride quality and sport performance—such as roll rigidity—without compromising the refined feel of the stock suspension, making it ideal for daily driving.
- The damping characteristics are designed to provide both smooth, supple motion and firm, controlled resistance, dramatically improving stability and control at the limit.
- Unlike the previous version, this setup features dedicated tuning tailored to the handling characteristics of the post-minor-change (Gen2) model.
- Testing was also conducted with the newly introduced automatic transmission variant, ensuring optimal ride quality for both MT and AT models.
Specification
| FRONT | REAR | |
|---|---|---|
| Damping force adjustment | 30 steps | 30 steps |
| Base valve | - | - |
| Height adjustable lower bracket | 〇 | 〇 |
| Upper mount | Rubber | Rubber |
| Inverted/Normal type | Inverted | Normal |
| Damper/Spring layout | Coilover | Separated |
| Spring rate change at factory | Possible | Possible |
| Damping force adjustment with wire | - | - |
| Helper spring (Spring rate N/mm) |
- | - |
Ride Height (mm)
| Factory *2 | Test data | Adjustable range High - Low *3 |
Drivable range High - Low *4 |
||
|---|---|---|---|---|---|
| FRONT | Ride height *1 | 654 | 651 | 681 ～ 615 | 681 ～ 615 |
| Against stock | -27 | -30 | 0 ～ -66 | 0 ～ -66 | |
| REAR | Ride height *1 | 651 | 654 | 678 ～ 618 | 678 ～ 618 |
| Against stock | -26 | -23 | 1 ～ -59 | 1 ～ -59 | |
*Not compatible with Gen1 model (up to March 2024)
